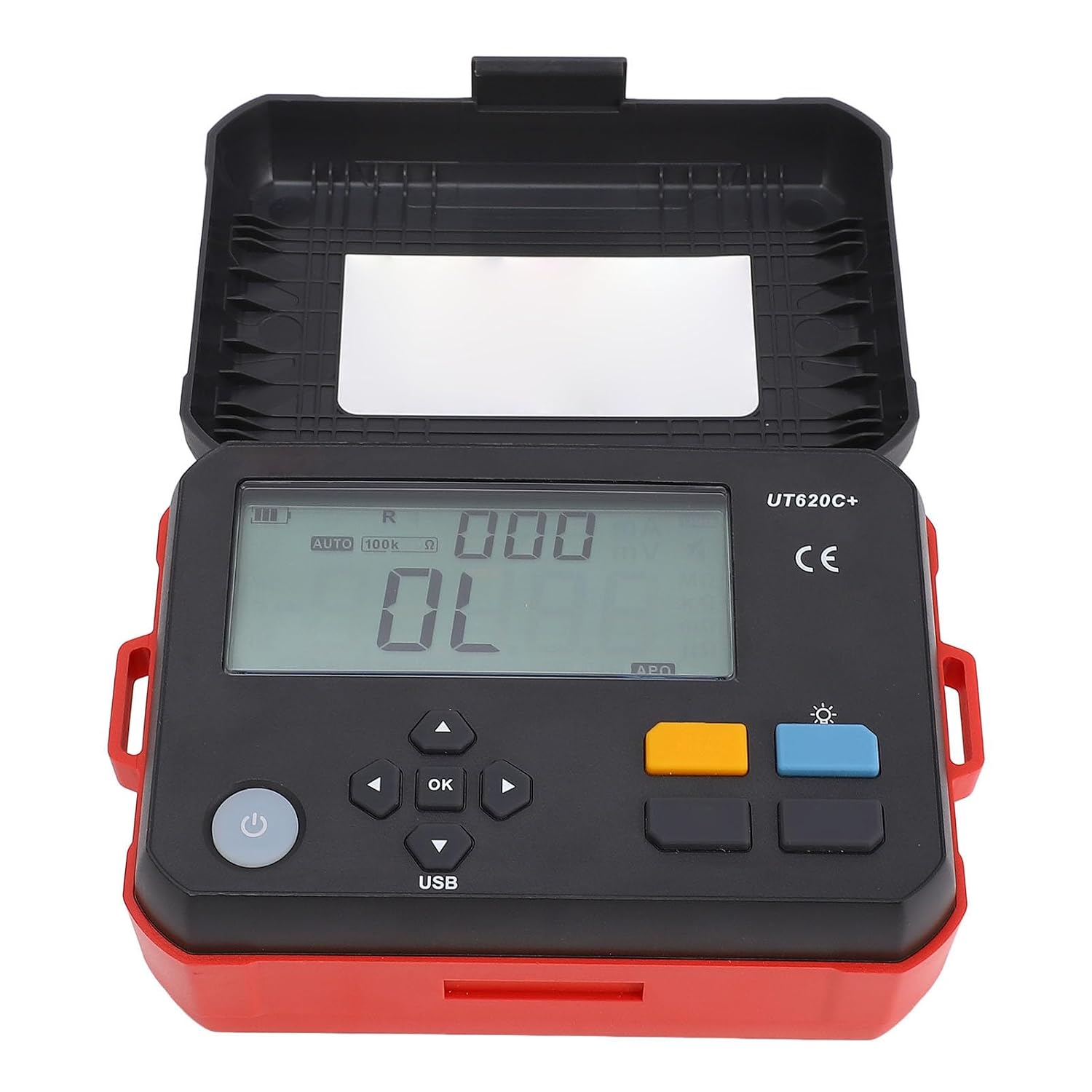

Garosa Digital DC Low Resistance Meter Micro Ohm Milliohm Microhmmeter 0.001m-300 499 Data Storage USB Type C Communication with LED Backlit Display for Wire Motor Testing (US Plug 100-240V)

Spec: Item Type: Digital DC Low ​ Meter Material: ABS, PC Power Adapter Output: DC 5V 2A Power Supply: 1 x Li ion Battery 3200mAh (Built in) Battery Model: UT M20 Display Mode: LED display, gray white screen backlit LED Size: Approx. 102 x 49.5mm / 4.02 x 1.95in Measurement Speed: Approx. 2 seconds/time Communicating Cable: Type C communicating cable Data Storage: 499 sets Data Reviewing: Supported Over Range Display: Supported Battery Level Display: Supported Auto Power Off: Automatically ​ off after 15 minutes of inactivity ​ Range and Accuracy: ​ Range: 0.001mΩ-10.000mΩ Resolution: 0.001mΩ Maximum Test Current: 1A ​ Range: 10.01mΩ-100.00mΩ Resolution: 0.01mΩ Maximum Test Current: 1A ​ Range: 100.1mΩ-1000.0mΩ Resolution: 0.1mΩ Maximum Test Current: 100mA ​ Range: 1.001Ω-10.000Ω Resolution: 0.001Ω Maximum Test Current: 10mA ​ Range: 10.01Ω-100.00Ω Resolution: 0.01Ω Maximum Test Current: 1mA ​ Range: 100.1Ω-1000.00Ω Resolution: 0.1Ω Maximum Test Current: 100uA ​ Range: 1.001KΩ-10.000kΩ Resolution: 0.001kΩ Maximum Test Current: 10uA ​ Range: 10.01KΩ-100.00kΩ Resolution: 0.01kΩ Maximum Test Current: 10uA ​ Range: 100.1KΩ-300.0Ω Resolution: 0.1kΩ Maximum Test Current: 3uA Accuracy: ± (0.1FS+20dgt), Within 18 ℃ to 28 ℃ and below 75RH Package List: 1 x Microohmmeter 1 x Supply Adapter 1 x Shoulder Strap 1 x Communicating Cable 2 x Test Clamp/Holder 1 x User Manual 1 x Carrying Box/Cover How To Use: Follow the instructions manual after taking out the product.

• [Seamless Pc Integration] Equipped with a type c interface, this meter allows for easy communication with your pc. once the driver is installed, you can collect test results, set sampling rates from 0.1s to 5s in 50ms increments, and perform detailed data analysis. this feature transforms your meter into a powerful tool for comprehensive resistance testing and reporting.
• [User Friendly Interface] Featuring a clear led display with gray white screen backlit, this meter offers easy readability in any lighting condition. the auto power off function conserves battery life by shutting down after 15 minutes of inactivity. combined with a battery level display, it ensures you are always aware of the power status during measurements.
• [Superior Electrode Design] The innovative separation of current and voltage electrodes removes internal wiring impedance and touch resistance, providing more accurate measurements. this design is for demanding environments where precision is paramount, making it a top choice for engineers and technicians working with sensitive equipment.
• [High Precision Measurement] The digital dc low meter ensures unparalleled accuracy with its advanced line calibration feature. by eliminating the impact of test cable resistance, it delivers precise measurements every time. ideal who demand reliability in small tests, this meter minimizes errors and guarantees accurate results across a wide range of applications.
• [Efficient Data Management] With a capacity to store up to 499 sets of data, this meter intelligently displays null when no data is stored and full when storage is maxed. this intuitive feature prompts users to manage stored data efficiently, ensuring seamless operation during extended testing sessions. never worry about losing test results again.
